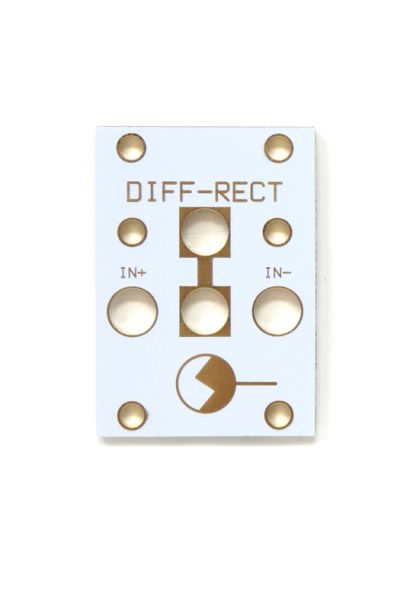

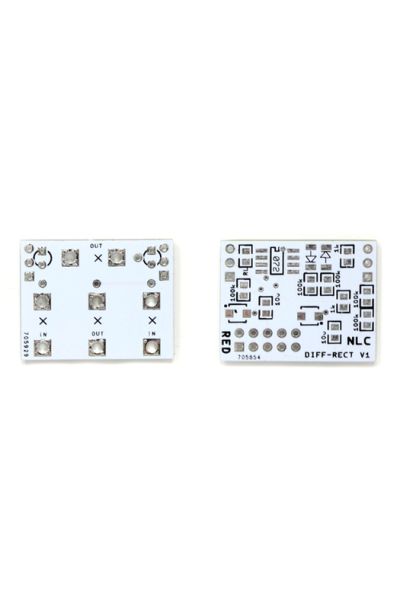

1U Diff-Rect - 1U Tile Differential Rectifier PCB / Panel | NonLinear Circuits
1U Diff-Rect - 1U Tile Differential Rectifier PCB / Panel | NonLinear Circuits

1U Diff-Rect - 1U Tile Differential Rectifier PCB / Panel | NonLinear Circuits

Be the first to review this product
$10.00

The NLC 1U Diff-Rect  can be used as a complex audio waveshaper, gate or pulse generator, CV shaper or to generally mess things up.

This is a 1U Pulp Logic Tile format Module.

- +
Availability:In stock
Brand NonLinear Circuits
Details

The Differential Rectifier (Diff-Rect) can be used as a complex audio waveshaper, gate or pulse generator, CV shaper or to generally mess things up. The diff-rect is a hybrid of two basic op amp ‘building blocks’ – a difference circuit and a rectifier. Not sure if  the two have been merged together before. It is probably a bad idea except for synth use, where it is a wonderful idea!

The Difference Rectifier has 4 inputs (two + & two -) and two outputs.

Additional Information
More Information
Brand NonLinear Circuits
HP 6
Additional Resources Build Guide + BOM
