Special Price $22.50 Regular Price $25.00

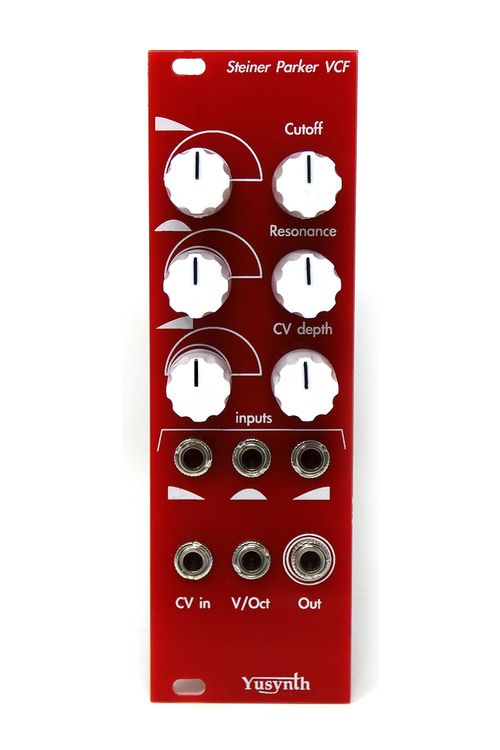

Timo Rozendal's Eurorack take on the YuSynth Steiner-Parker VCF.

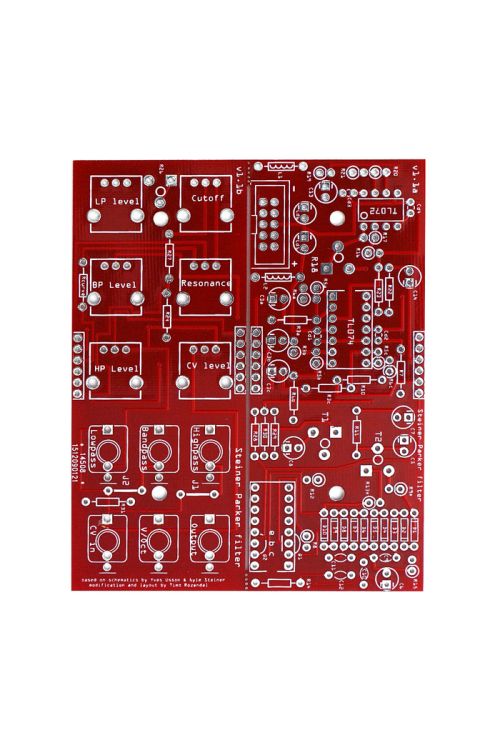

This is a PCB/Panel set in the Eurorack format.

- +
Availability:In stock

From Yves Usson/YuSynth:

This is my latest take at the Steiner-Parker VCF, in which I tried to improve the design in order to correct some flaws of the original design : scratchy resonance potentiometer, untamed auto-oscillation.

From Timo Rozendal:

Changes from original design:
- no switch but separate buffered input for every mode (LP,HP,BP),
- lowpass input is normalled to highpass and bandpass, so you can e.g. transition smoothly between high and lowpass with the knobs
- 'tweak' resistors are replaced by trimpots
- added decoupling capacitors for ic's
- added a flexible footprint for the matched transistors, I tested it with THAT300, AS394 (Letvian LM394 clone), 2n3904 and BC547 (I don't hink the original 2SC1583 will fit)

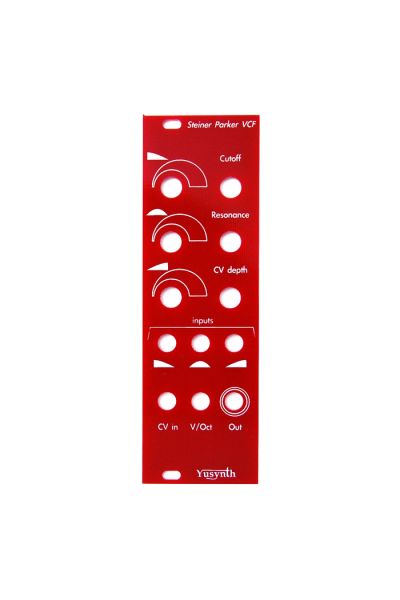

- provided panel pcb, so no wiring required

The inputs have enough gain to overdrive a normal signal in the filter.
The resonance is still a bit untamed and chaotic and not so useful for melodies (plus it won't self resonate at low frequencies, a known trait of this filtertype)

More Information
Brand Timo Rozendal
HP 8
Depth 43mm
+12V 16mA
-12V 16mA
Additional Resources Build Guide
