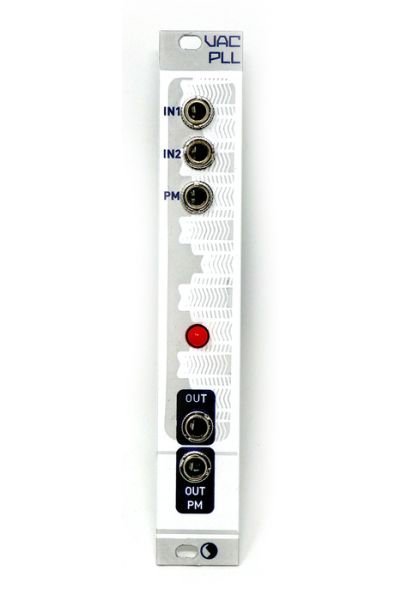

Vactrol PiLL | NonLinear Circuits

Vactrol PiLL | NonLinear Circuits

From $11.99

To $56.97

This is a simple DIY modular synth circuit from Nonlinear Circuits that is capable of making a wide variety of sounds. With a sequencer it can be used as a crude VCO, but fed other signals, such as from envelope generators and LFOs, it will sound like anything from a baboon with the squirts to a cheesy 80s video game laser cannon.

CV controlled baboon with the squirts.  Let that sink in.  Your move, Korg.

Customize: Vactrol PiLL | NonLinear Circuits

* Required Fields

Your Customization

    $11.99

    - +
    Availability:In stock
    Details

    The name is drawn from the two main components that define the function and characteristics of the module. One is the vactrol which is a light controlled resistor, these have an interesting effect whereas there is always a time delay whilst the resistor changes its value – this is a good thing and has been exploited by many synth designers, notably Don Buchla. The PiLL is from a PLL – phase locked loop, this is a special purpose IC which contains number of subcircuits and usually used in radio and digital control circuits. It contains a VCO, logic gate and a phase detector = all fun stuff!

    Additional Information
    More Information
    Brand NonLinear Circuits
    HP 4
    Additional Resources v2 PCB BOM & Build Guide
