$100.00
A network switch that listens and sends any bit of traffic out the audio output.
Availability:In stock
BrandWenzel Labs

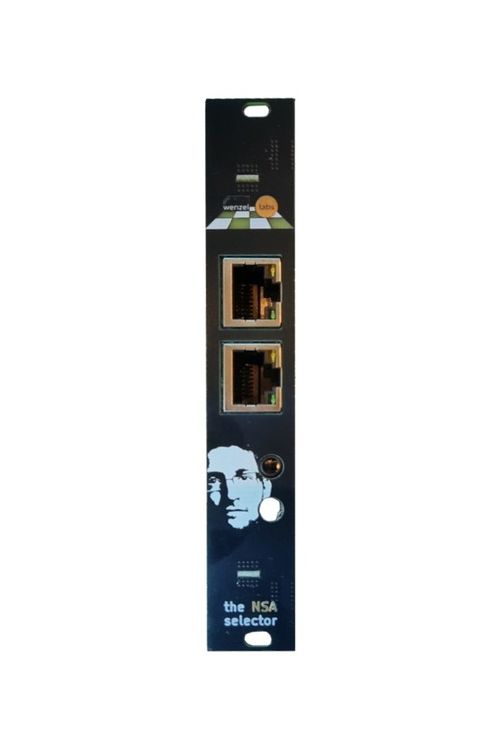

the NSA selector is a eurorack module with two ethernet jacks and one audio output. any bit on the network will be sent to the audio output.
not an "audio interface". we do not play back any "format" such as RTP or MP3 or WAV or the like. the eurorack module does not "speak" any protocol. all traffic is forwarded from one network jack to the other unmodified. it's just tapped, intercepted to convert it to audio.

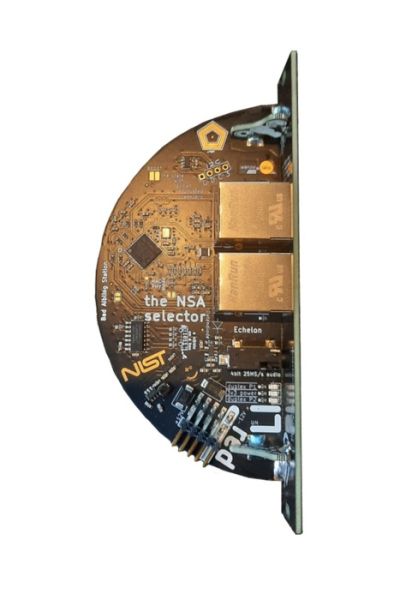

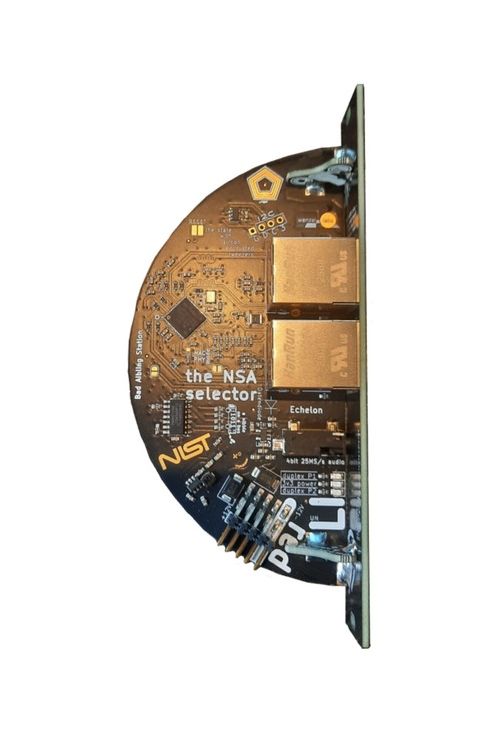

the NSA selector is a fast ethernet (FE=100Mbps) network switch with three ports. the two front ports are switched, and the third port is only available internally as 4 bit MII bus. it is configured as a mirror port of the two front ports and wired to a 4 bit DAC and a low-pass-filter.
| Brand | Wenzel Labs |
|---|---|
| HP | 4 |
| Depth | 55mm |
| +12V | 100mA |
| -12V | 2mA |
| +5V | 0mA |
| Additional Resources | Build Guide |
| 3D Thumbnail | /w/l/wlx-nsasel_panel.jpg |
