Karp - Circuitbent Digital Waveguide Partial Kit | Meng Qi
Karp - Circuitbent Digital Waveguide Partial Kit | Meng Qi
Special Price
$63.00
Regular Price
$70.00
Meng Qi Karp Partial Kit - a circuit bent digital waveguide in a DIY Eurorack kit.

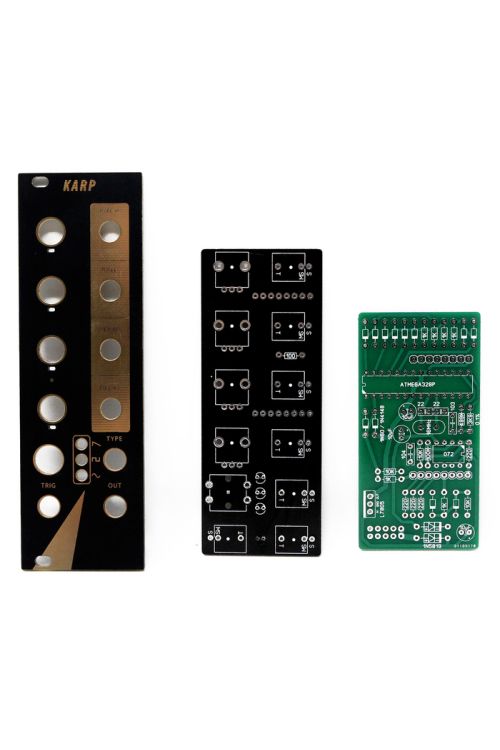

This is for a partial kit in the Eurorack format. It includes PCBs, panel, IC, switch cap and two precision resistors. You'll need to supply all other components.
Availability:In stock
BrandMeng Qi
Circuit-Bent Digital Waveguide™ 扰动数字波导
Karp explores and exploits errors in code, achieving non-linearity in control and circuit-bent-esque sounds.
In a general sense Karp excels in glitches and micro-movements with millions of sweet spots. Circuit bent sounds are achieved with literally using wrong code.
CV inputs accept 0-5v.
TYPE and TRIG expect trigger inputs.
When a CV input jack is inserted, the knob on the left become an attenuator for the input signal.
DECAY control is very sensitive. Most of the time, keep it fully counterclockwise or fully clockwise.
Holding the button during powering up would quantize pitch to D Major Pentatonic scale.
*To update Karp firmware, you need an arduino Uno, and a bootloaded ATMEGA328P-PU (comes with Uno), and software
OSX : HexUploader, Win : XLoader
| Brand | Meng Qi |
|---|---|
| HP | 8 |
| Depth | 35 mm |
| +12V | 35 mA |
| -12V | 5 mA |
| Additional Resources | Main PCB BOM Control PCB BOM Manual Firmware |
