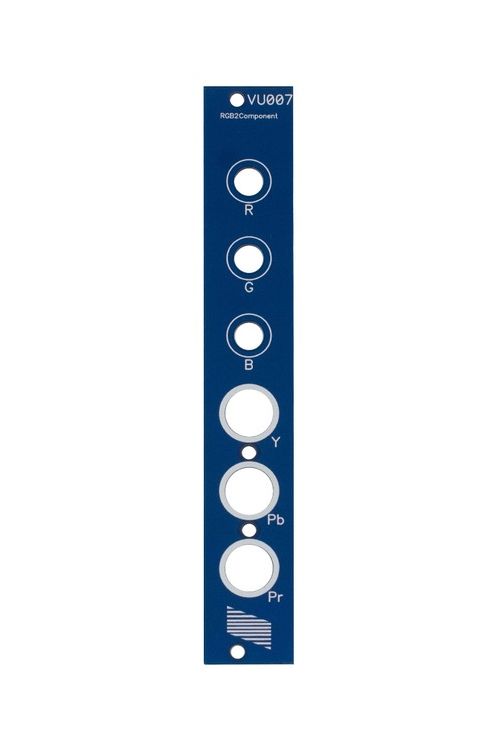

VU007 RGB to Component PCB Panel Set | Syntonie

$32.00

1V RGB to SD Component Encoder.

Availability:In stock

1V RGB to SD Component Encoder.

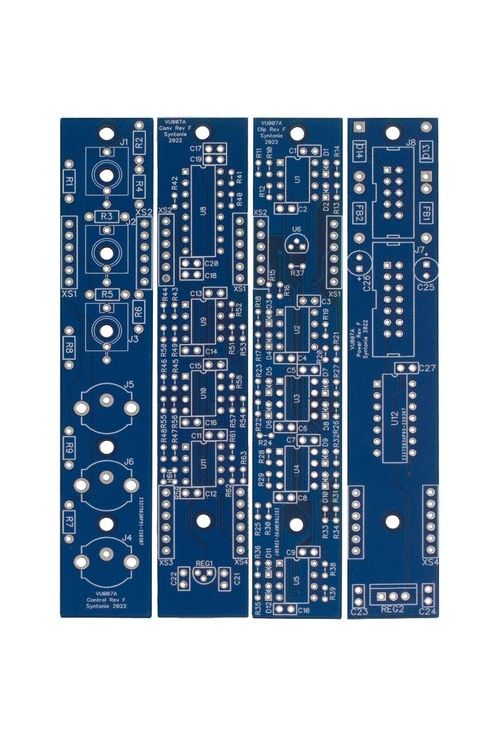

Uses 14pin sync cable for composite sync and blanking. PCB set and DIY kit comes with pre-soldered ADA4851-4.

Input : 0-1V RGB, 499 ohms, jack
Output : 0-700mV YpbPr, 75 ohms, RCA

Additional Information

More Information
Brand	Syntonie
HP	4
Depth	65mm
+12V	53mA
-12V	44mA
+5V	0mA
Additional Resources	BOM and Build Guide
