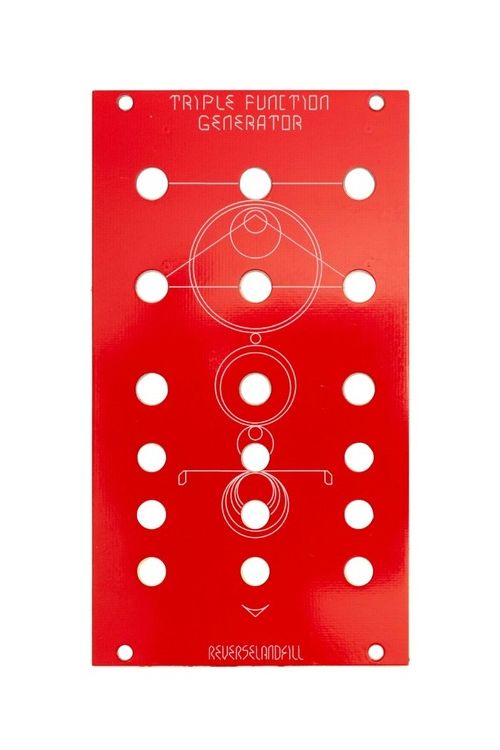

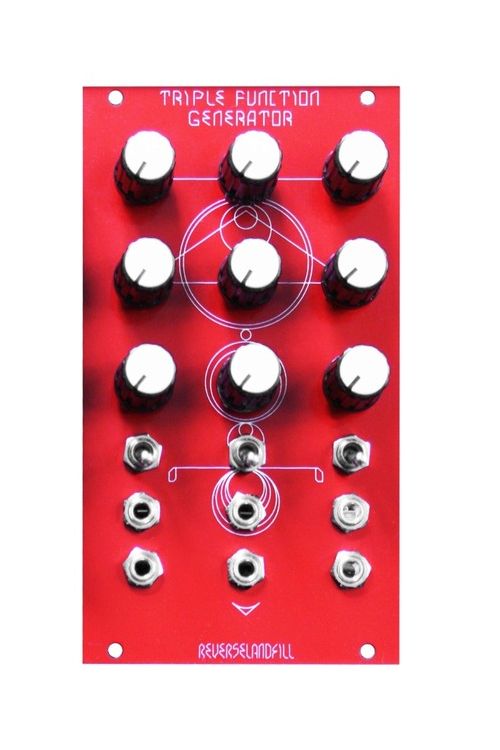

Triple Function Generator PCB and Panel set | Reverse Landfill
Triple Function Generator PCB and Panel set | Reverse Landfill
$45.00
The Function Generator is useful to adjust the “Lights” , “Mids” and “Darks” in the input signal.
Availability:In stock
BrandReverse Landfill
This module is based on schematics by D.Sandin & L.Larsen
I picked up this project because the pcb’s are not available anymore.
The Function Generator is a very useful module to have in a (DIY) video setup.
You can adjust the “Lights” , “Mids” and “Darks” in the input signal.
Effectively it works a bit like an equalizer, but you can also go negative. This will get you solarised effects.
I setup the design to work as a triple colorizer, as the Cadet system has black & white video input.
With this module, you can easily recolor the incoming images.

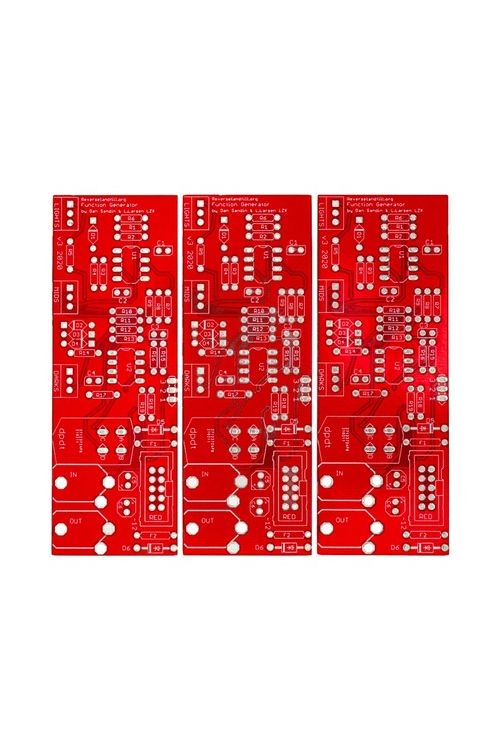

The inputs can be normalled together to achieve this. (there are connection pads on the pcb’s)
Feedbacking this and through module will also give cool results!
| Brand | Reverse Landfill |
|---|---|
| HP | 14 |
| Depth | 25mm |
| Additional Resources | BOM |
