TSNM 3U - Touch Sensing Note Memory Controller MKI| Doboz

TSNM 3U - Touch Sensing Note Memory Controller MKI| Doboz

$90.00

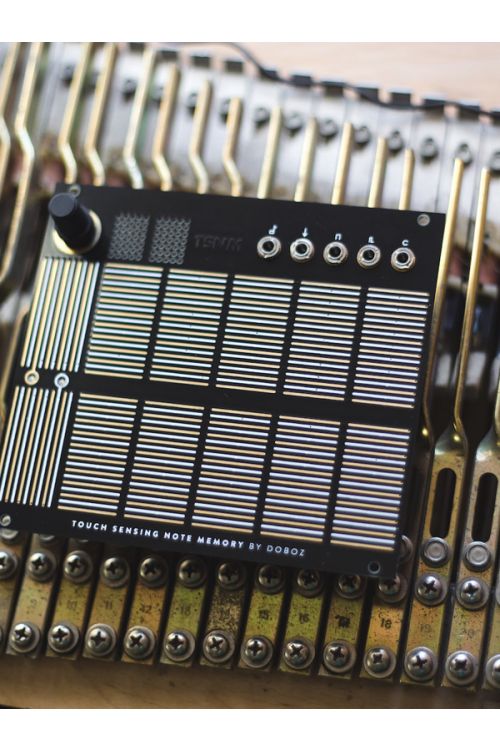

Touch Sensing Note Memory is a performance oriented monophonic keyboard controller featuring 10 note plates (tunable over 5 octaves) and two transposer plates (variable transposition distance from -24 to +24 semitones).

**Teensy non included!

Customize TSNM 3U - Touch Sensing Note Memory Controller MKI| Doboz

* Required Fields

Your Customization

    $90.00

    - +

    Availability: In stock

    BrandDoboz

    Touch Sensing Note Memory is a performance oriented monophonic keyboard controller featuring 10 note plates (tunable over 5 octaves) and two transposer plates (variable transposition distance from -24 to +24 semitones). Highly accurate pitch (V/oct) output is guaranteed by a precision 16-bit DAC. Pressure sensing capability of note plates gives maximum human control through the dedicated CV output. On-board arpeggiator, sequencer, quantizer, pressure CV recorder. The module can save 19 presets including keyboard layout, sequence and all the options under settings.

    TECHNICAL CHARACTERISTICS
    Width: 28hp
    Maximum depth: 30mm
    Power: 10mA @ +12V, 10mA @ -12V, 75mA @ 5V

    **Teensy non included!

    ***PCB/Panel not included w/ Parts Kit

    More Information
    Brand Doboz
    HP 28
    Additional Resources BOM User Manual
