$55.00
Dual LFO with a chaotic core
Availability:In stock
BrandDjupviks Elektronik

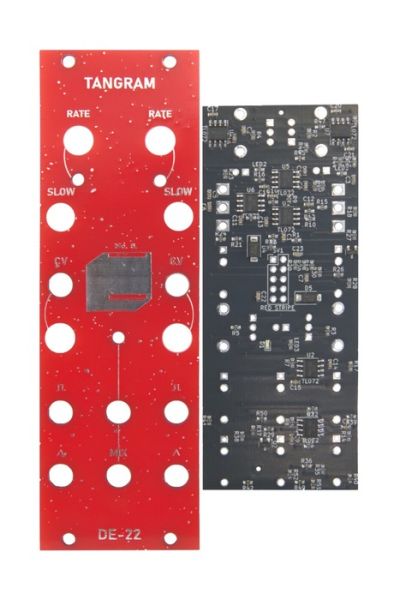

Tangram is a 8hp dual LFO with a chaotic core. Each LFO has 2 outputs, triangle and Square
which are 10v ppv.
The chaotic internal CV signal (of which there are 2) are normalled to the CV inputs of each
LFO. Using the corresponding pots for each CV input lets you dial in the right amount of the
chaotic signal. This makes the LFO to behave in a semi random behavior. Each LFO has a range
switch (labeled “SLOW” on the panl) switching between two different initial speeds of each
LFO. There is also a mix output which blends both chaotic signals with the Square wave from
LFO 1 and the Triangle from LFO 2 creating very interesting waveforms and patterns
Begränsad delning
(especially when applying CV control over the LFO’s like mentioned above). The naked chaotic
CV signal is also available through the unlabeled output above the mix output.
| Brand | Djupviks Elektronik |
|---|---|
| HP | 8 |
| Additional Resources | Build Guide |
