ACCESS Triple Attenuvert Bias | Foxing Hour
ACCESS Triple Attenuvert Bias | Foxing Hour
$25.00
ACCESS provides users with attenuation/attenuversion and bias controls for three video signals.d
Availability:In stock

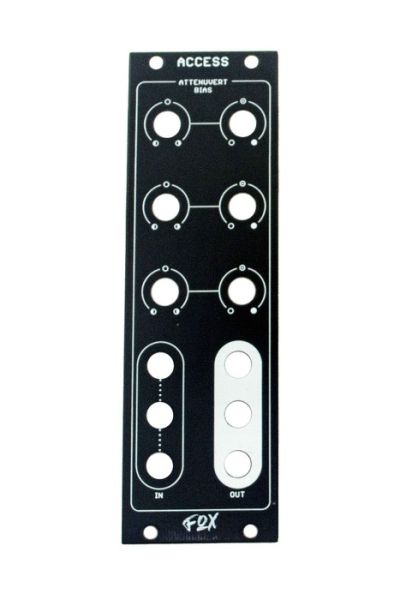

ACCESS provides users with attenuation/attenuversion and bias controls for three video signals. It may be used with a full color RGB set or with three separate luma/control voltages.
Using the Attenuvert knobs controls the input signal from -1 to +1 only. The Bias knobs apply an offset from -1volt CCW to +1volt CW.
The top-most input is normalled to a 1 volt reference signal which allows the module to be used as a bipolar -1 volt to +1 volt control voltage when nothing is plugged into the inputs. All inputs are normalled as 1volt>R>G>B.
| Brand | Foxing Hour Electronics |
|---|---|
| HP | 8 |
| Depth | 41mm |
| +12V | 30mA |
| -12V | 30mA |
| +5V | 0mA |
| Additional Resources | BOM and Build Guide |
