Details

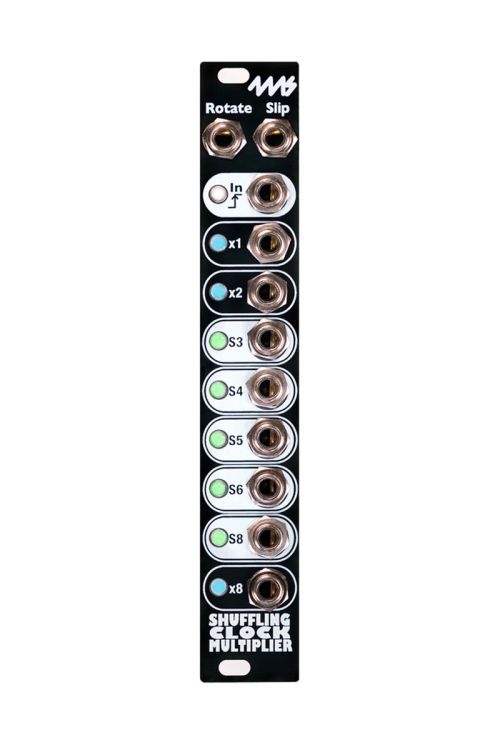

SCM Basic Features:
- Multiply-by-1 to Multiply-by-32, on 8 output jacks
- Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
- Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects
- CV Rotate jack to shift multiply-by amount on all jacks
- CV Slip causes particular beats to land ahead in time
- Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast
- ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code
- Maximum input frequency 3kHz
SCM Breakout Basic Features:
- New features for version 2:
- Mute and 4x Fast are LED buttons
- Pressing Mute or 4x Fast inverts the signal on the jack
- Knobs are centered straight up (12:00)
- Rotate and Slip knobs attenuate the breakout jacks, and the corresponding jacks on the main SCM module are added to this attenuated signal. If nothing is plugged into the Rotate or Slip jaks on the breakout, the knob functions as a manual control (same as it did on version 1).
- Depth 25mm
- Power draw maximum 14mA extra from the +12V (no -12V or +5V draw).Power is taken from the main SCM module
- Expands the features of the SCM:
- CV Shuffle jack and knob selects which beats are slipped by CV Slip (default=every other beat)
- CV Pulse Width jack and knob controls width of output pulses (default=50%)
- CV Skip jack and knob omits certain beats in a pattern (default=no skip)
- Re-sync Trigger input
- Additional CV Rotate and CV Slip jacks add to main SCM's Rotate and Slip jacks
- 4x Fast CV Gate jack and switch speeds up multiply-by amounts
- Mute CV Gate jack and switch stops any more beats from starting
Additional Information
Brand | 4MS |
---|---|
HP | 4 |
Depth | 48mm |
Additional Resources | SCM BUILD GUIDE Break Out BUILD GUIDE |
